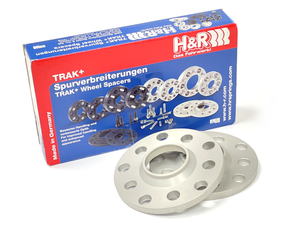

H&R TRAK+ DR Wheel Spacers - 10mm 5x100 [202555712A]
SKU:
DR Series spacers fit between the wheel and hub, and require longer wheel bolts (ordered separately). Please verify bolt specifics before ordering (taper or round bolt head and shaft length).
Applications/Description
| Make | Model | Chassis | Years | Bolt Pattern |
Center Bore |
Bolt/ Stud |
Thread Type |
Width | Notes |
|---|---|---|---|---|---|---|---|---|---|
| Audi | TT | 2WD | 1999-06 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Audi | TT Quattro | AWD | 1999-06 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Audi | TT Quattro Roadster | AWD | 1999-06 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Audi | TT Roadster | 2WD | 1999-06 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Beetle | 4 cyl, Turbo | 1998-10 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Beetle | TDI | 1998-10 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Beetle Cabrio | 2003-10 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 | |
| Volkswagen | Golf IV | 2.0L | 1998-05 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Golf IV | VR6, TDI, 1.8T | 1998-05 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Golf IV | 4motion | 2000-04 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Golf IV GTI 20th Anniv. Ed. | 2003-03 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 | |
| Volkswagen | Jetta IV | VR6, TDI, 1.8T | 1998-05 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Jetta IV | 2.0L | 1998-05 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Jetta IV | 4motion | 2000-04 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Jetta IV Wagon | 2.0L | 2001-05 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Jetta IV Wagon | VR6, TDI, 1.8T | 2001-05 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Passat Sedan | 4 cyl, 16V | 1990-94 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Passat Sedan | 4 cyl, Typ 35i | 1990-97 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Passat Sedan | VR6 | 1993-94 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Passat Sedan | 6 cyl,Typ 35i | 1993-97 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Passat Wagon | 4 cyl, 16V | 1990-94 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Passat Wagon | 4 cyl, Typ 35i | 1990-97 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Passat Wagon | VR6 | 1993-94 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | Passat Wagon | VR6, Typ 35i | 1993-97 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
| Volkswagen | R32 | AWD | 2004-04 | 5/100 | 57.1 | Bolt | 14x1.5 | 10.0mm | 3 18 24 |
HOW TO MEASURE
1. Gather Tools
To properly measure your wheel gap you will need a few simple tools:
- Measuring device with millimeter units
- Straight edge--Yard stick or similar
2. Check Your Gap
- Place a straight edge flush with the face of the wheel and tire combination. Make sure the straight edge touches the tire in two spots to keep the straight edge even with the tire.
- Use the measuring device to measure from the inside of the straight edge to the inner fender lip. (see diagram)
- Make sure that the measurement is taken at the point where the wheel and tire is closest to the fender. For instance, on a car with a large amount of negative camber the tire and wheel may be closest at the front or rear edge of the fender.
